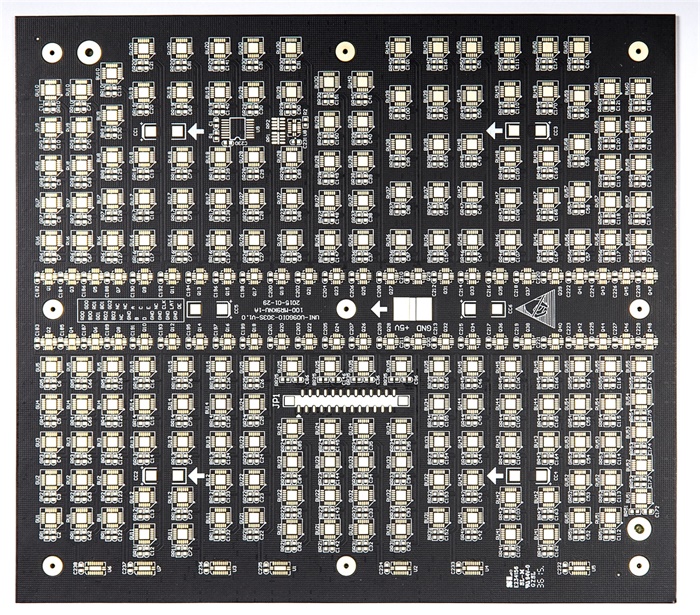

Technical Parameters
Part Number：GHM08C03061A0
Layer count: 3 stage 8 layer
Board thickness：2.0mm
Dimension：261*180.98mm
Raw material：FR4 EM825
Copper thickness on the board surface：≥35um
Copper thickness in the hole barrel：20um
Min.line width/space：0.075mm
Minimum hole diameter：0.1mm
Surface finishing：immersion gold≥2u"
Pitch: P0.9
Application：LED
