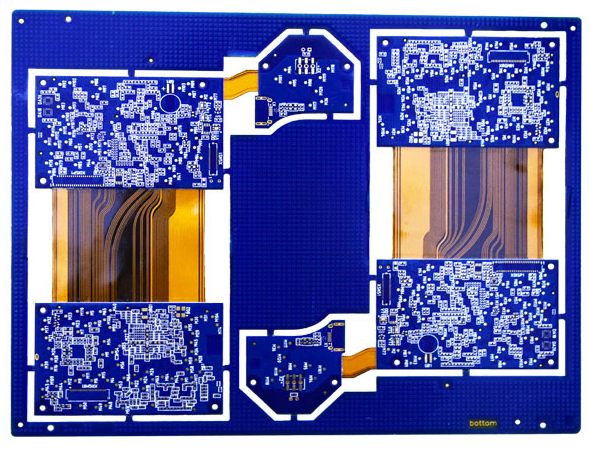

Description:Model Number: Flex-Rigid PCB
Base Material:TG150 FR4, Polyimide
Layer Count:4 layers
Copper Thickness: inner 0.5oz, out 1oz
Board Thickness:1.6mm
Min. Hole Size:0.1mm
Min. Line Width:0.1mm
Min. Line Spacing:0.12mm
Surface Finishing: Immersion Au (ENIG)
PCB: Customized
PCB Tolerance of finished thickness:±10%
Hole tolerance:PTH:±0.075,NTPH:±0.05
Solder mask: blue
Cover film: Yellow
Board size:40mm*135mm
profiling punching:Routing, V-CUT, Beveling
Wrap and twist:7.5%
Buried via:Yes
Blind hole:Yes
Resin plug hole
